power metal fiber laser cutting machine for medical equipment

produkt detaljer

Sertifisering: ISO9001: 2008
Betalings- og leveringsbetingelser:
Minimum bestillingsmengde: 1
Pris: FORHANDLING
Emballasjedetaljer: TRE VESKE
Leveringstid: 15 DAGER
Forsyningsevne: 2000 ENHETER

Detaljert produktbeskrivelse

Navn:	Skjæremaskin for metallfiber	Applikasjon:	Medical Equipment
Trekk:	Medium - Power	Andre navn:	Cnc Steel Cutting Machine
Lasertype:	Fiberlaser	sertifisering:	ISO9001: 2008

Features of metal laser cutting machines

* The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.
* 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
* Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
* Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

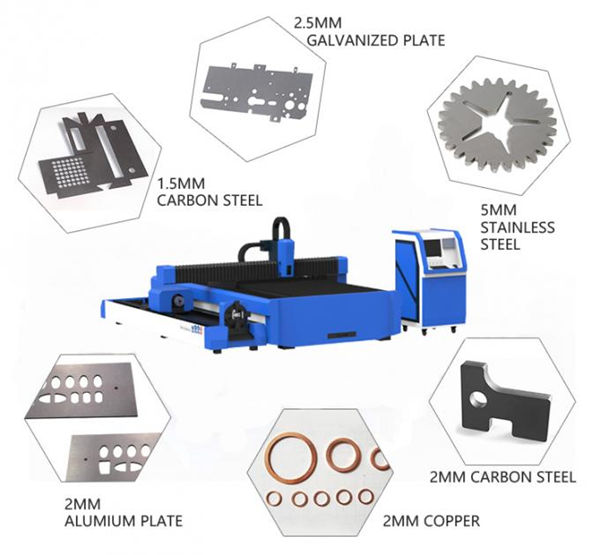

* Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.

Machine characters

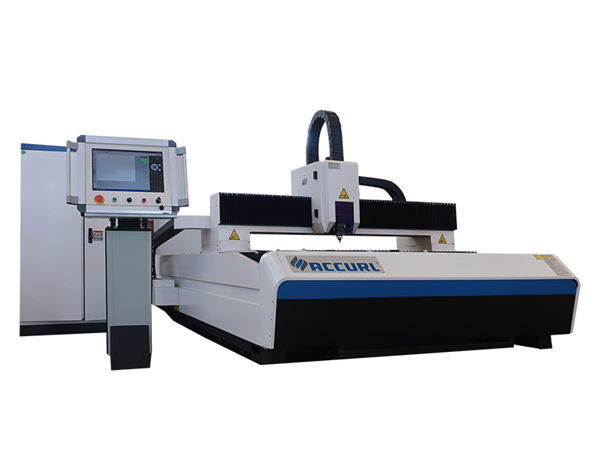

* Using gantry type mechanic structure , performance is stable .
* Aheadcut USA fiber laser control system, with laser power adjusting function ,
* This model adopts servo motor driving system.machine bed movement structure using high accuracy gear to transit , so to ensure the high speed , high precision and high reliability.
* Using Raytools Switzerland fiber laser cutting head,safe and stable.
* Adopts Maxphotonics fiber laser source ,which is with imported modular high performance, low processing cost ,Eco-friendly .

Teknisk parameter

^Punkt	^Parameter
^Lasertype	^Fiberlaser
^Bølgelengde	^1070-1080nm
^{Elektro-optisk konvertering effektivitet}	^25-30%
^XYZ-rute	^{3025mm / 1525mm / 100mm}
^{Materiale skjæretykkelse}	^0.2-8mm
^{Skjæresømbredde}	^0.1-0.2mm
^{Gjenta nøyaktighet}	^{± 0,05 mm / 500mm}
^{Plasseringsnøyaktighet}	^{± 0,05 mm / 500mm}
^{Maks. Flyttehastighet}	^{60000mm / min}
^{Maks. Gjennomsnittshastighet}	^{0.8 g}
^{Maks. Lastevekt}	^500kg
^{Maskinens vekt}	^2300kg
^{Nødvendig strøm}	^{220V 50Hz / 60Hz}
^{Maskinstørrelse (L * W * H)}	^{4500mm * 2450mm * 1700mm}

Applied Fields of laser cutting machine

Laser Metal Cutting machine er mye brukt i maskinvare, presise maskiner, bilkomponenter, glassur og klokker, presis skjæring, medisinsk utstyr, instrumenter og annen metallrelatert industri.
Det kan sarry ved ikke-kontakt skjæring på metallplate, rør, spesielt for rustfritt stål, sttelplate, diomond sagblad og andre metallmaterialer. Den har utmerket prosessering for de forskjellige høye sprø harde legeringer. I linjene maskinvare- og metallarkindustrier kan laserskjæringsteknologi delvis erstatte linjeskåret.
