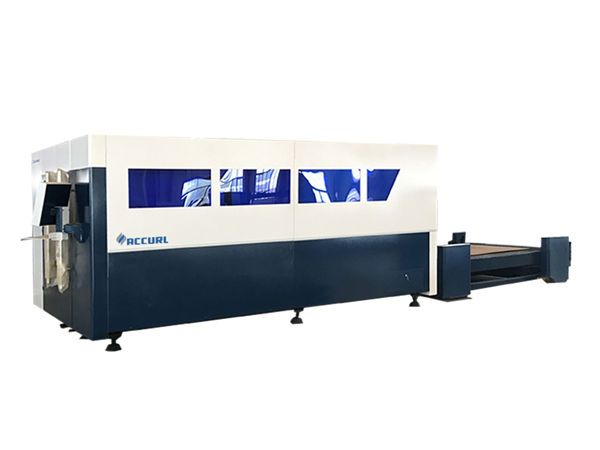

single platform cnc fiber laser cutting machine , metal sheet cutter

produkt detaljer

Sertifisering: CE / ISO / FDA / SGS / TUV
Betalings- og leveringsbetingelser:
Minimum bestillingsmengde: 1
Pris: omsettelig
Emballasjedetaljer: Treveske
Leveringstid: 15 virkedager
Betalingsbetingelser: T / T, L / C, Western Union
Forsyningsevne: 2000 enheter

Detaljert produktbeskrivelse

Produktnavn:	Skjæremaskin for fiberlaser	Lasertype:	Fiberlaser
Laserkraft:	500-1000w	Arbeidsplass:	1500 * 3000mm
Laser bølgelengde:	1070-1090nm	Strømforsyning:	380V / 50Hz
Garanti:	1 år	Skjærehode:	Raytools

Hovedkonfigurasjon og teknisk fordel

Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

^{Hovedtrekkene}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Rask kuttehastighet sparer arbeidstid.
3. Energisparing og miljøbeskyttelse;
4. Utmerket kvalitet på lysstrålen: liten fokusfasula, fin skjærelinje, høy arbeidseffektivitet, beste prosesseringskvalitet.
5. Svært lave vedlikeholdskostnader: overføring av optisk fiber, uten refleksjonslinser; kan spare mye vedlikeholdskostnader;
6. Produkter enkel betjening: ikke nødvendig å justere den optiske banen;
7. Fleksibel lysstyringseffekt: liten størrelse, kompakt struktur og lett å oppfylle fleksible produksjonskrav.}

^{Tekniske parametere}

^{Product name}	^{Skjæremaskin for fiberlaser}
^Lasertype	^Fiberlaser
^{Working area(mm)}	^{13002500MM/15003000MM}
^Skjærehode	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Maks løpehastighet}	^600m/min
^{Posisjonsnøyaktighet}	^{≤ ± 0,05 mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Working Table}	^{Rack working platform}
^{Kontrollsystem}	^{Cypcut kontrollsystem}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Maks akselerasjon}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Overføring	^{Precise pinion and rack,dual-drive transmitting}

Descriptions	parametere
Modell	1530 Fiber laser cutting machine
Arbeidsplass	1500 * 3000mm
Laserkraft	500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	1200mm/s
Posisjonsnøyaktighet	±0.05mm/m
Position Speed	20 m / min
Minimum Line Width	± 0.02mm
Kutte tykkelse	0-12mm
Kontrollsystem	Cypcut
Position Type	red dot
Strømforbruk	≤12KW
Working Voltage	380V / 50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	Mer enn 100000 timer
Fiber laser cutting head	Lasermech made in USA
Focus lens	Lasermech made in USA
Driver system	1500W Fuji servo motor made in Japan
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
Overfør systemet	Dual Rack & Pinion-type
Rack-system	made in Germany
Chain system	Igus made in Germany
Delivery time	15 days

Produkt applikasjon

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

applikasjoner

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
